Topographical Surveys & Earthworks Mapping

Understand the ground before you build.
Measure the changes as work progresses.

Before construction can begin, engineers,
surveyors and project teams need reliable
information about the land. Existing levels,
slopes, site features and ground conditions
all influence design, planning and
earthworks requirements.

Drone surveying combines aerial imagery,
photogrammetry and LiDAR to capture detailed
site information. Processed data can support
topographical mapping, terrain modelling,
volume calculations and repeat measurements
throughout the construction lifecycle.

The result is a clearer, more measurable
understanding of the site, helping teams
plan work, monitor changes and make
informed decisions.

Explore Surveying Solutions

Aerial surveying provides an overview of terrain,
excavation levels and earthworks before
structural construction begins.

The Challenge

What lies on the ground determines what can happen above it.

Construction sites are rarely uniform.
Sloping ground, existing structures,
uneven terrain, excavations and changes
in elevation can create difficulties
during design and delivery.

Survey teams need dependable measurements
to assess site levels, calculate earthwork
requirements and establish reliable records
of ground conditions.

Traditional surveying methods remain essential,
particularly for control, verification and
critical detail. However, gathering dense
measurements across large or changing sites
can be time-consuming.

Drone-based data capture complements these
methods by providing extensive site coverage
and detailed spatial datasets that can be
processed into useful mapping and measurement
outputs.

Questions That Matter

What are the existing ground levels?

Establish terrain elevations, slopes and contours for project planning and engineering assessment.

How much material needs moving?

Compare existing and proposed surfaces to estimate cut-and-fill requirements and earthwork quantities.

How is the site changing?

Compare successive surveys to understand excavation, filling and changes to site topography.

Can the information be shared?

Produce spatial datasets suitable for review by surveyors, engineers and construction teams.

Drone Applications

Where are drones being used in topographical surveying and earthworks?

Drone technology supports both initial site
investigation and repeat surveying as
excavation, filling and construction progress.

01 / TOPOGRAPHICAL MAPPING

Existing site and terrain surveys

Capture detailed aerial data to support
orthomosaics, elevation models and contour
mapping. Surveyors can use these outputs,
alongside verified survey control, to
understand site levels, slopes and
existing surface features.

02 / EARTHWORKS

Cut-and-fill volume calculations

Compare surveyed surfaces with design
levels or previous surveys to estimate
material excavation and fill volumes.
These measurements support earthworks
planning, progress checks and
quantity reconciliation.

03 / SITE MONITORING

Excavation and ground change monitoring

Conduct repeat surveys to measure
changes in excavated areas, embankments,
platforms and prepared ground.
Dated surface models provide a basis
for comparing quantities and recording
how work develops over time.

04 / DIGITAL SURVEY DATA

Survey deliverables and design integration

Generate point clouds, orthomosaics,
terrain models and georeferenced
datasets for use in compatible CAD,
GIS and design workflows, subject
to project specifications and
appropriate data validation.

From Flight to Survey Data

Capture the site. Process the measurements.
Deliver usable information.

Effective drone surveying combines a planned
data capture method, suitable control and checks,
and appropriate processing.

01. Plan and establish control

Define the required outputs and accuracy.
Establish suitable survey control and
independent checkpoints, then plan
the photogrammetry or LiDAR mission.

02. Capture and process

Collect imagery or LiDAR measurements
using appropriate aircraft and sensors.
Process the data into mapped imagery,
point clouds and elevation models.

03. Validate and deliver

Check results against independent
survey observations and deliver
the agreed mapping, surfaces and
quantities to the project team.

Technology in Action

Different technologies measure
different parts of the site.

Drone surveys use aerial photography or
LiDAR to capture detailed spatial information.
The right method depends on terrain,
vegetation and the intended survey outputs.

Photogrammetry:
Overlapping photographs produce orthomosaics,
point clouds and 3D surface models.

LiDAR:
Laser measurements produce 3D point clouds,
including ground returns beneath some vegetation
where conditions allow.

RTK and PPK:
Corrected satellite positioning improves
georeferencing of survey data.

Survey verification:
Control points, independent checkpoints
and agreed coordinate systems help
validate the finished results.

These technologies complement established
surveying methods and provide useful
measurements for construction decisions.

Survey Technology Explained

RGB

Photogrammetry

Overlapping images produce orthomosaics,
dense point clouds and textured models
of visible site surfaces.

LID

LiDAR Scanning

Laser measurements support detailed
3D mapping, terrain representation
and point-cloud classification.

RTK

RTK and PPK Positioning

Corrected positioning supports
georeferencing, used alongside
appropriate survey verification.

GIS

CAD and GIS Outputs

Surfaces, contours, point clouds and
mapped imagery support compatible
engineering and planning workflows.

Understanding the Survey Outputs

Digital Surface Models and Digital Terrain Models:
what is the difference?

These two outputs are often discussed together,
but they represent different surfaces and
have different practical uses.

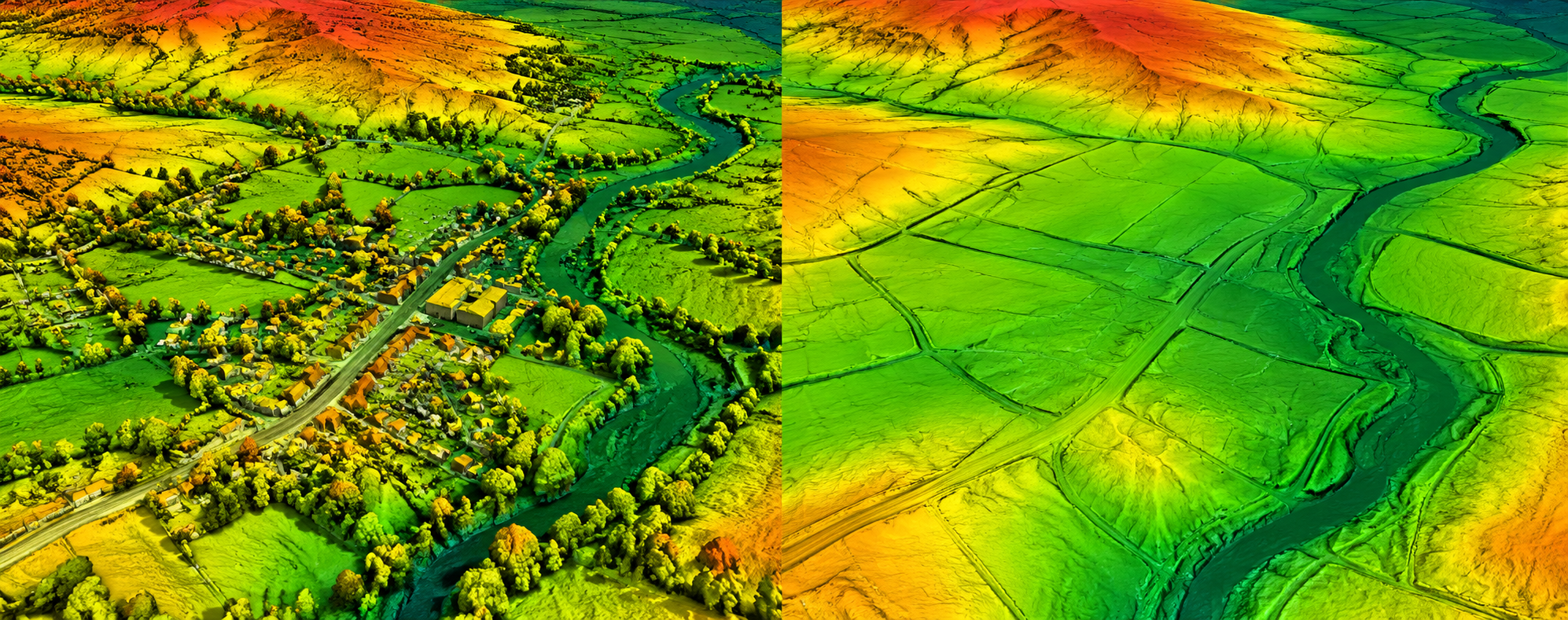

Comparison of a digital surface model and digital terrain model of the same landscape

The same landscape can produce different elevation
representations depending on whether surface
features are included or the underlying ground
is being modelled.

Digital Surface Model (DSM)

A DSM represents the elevations of visible
surfaces captured in the survey, which can
include buildings, vegetation, vehicles,
material piles and other features.

It is useful for understanding the existing
site surface, monitoring material changes
and reviewing visible terrain and structures.

Digital Terrain Model (DTM)

A DTM aims to represent the underlying
ground surface, excluding features such as
buildings and vegetation. It may be produced
through point classification and suitable
terrain modelling.

It is particularly useful for ground-level
analysis, contour mapping, earthworks
calculations and terrain assessment.

Important:
A photogrammetric survey of a vegetated site
does not automatically reveal bare earth
beneath the vegetation. LiDAR can provide
additional ground observations in some
conditions, but neither method guarantees
a complete or accurate terrain model
without suitable survey design and validation.

Why It Matters

Better survey information supports
better construction decisions.

Topographical and earthworks data supports
project planning, quantity estimation and
the measurement of physical changes
throughout construction.

More Informed Planning

Detailed terrain information supports
design discussions, site preparation
and the identification of ground
constraints before work begins.

Better Quantity Information

Repeatable surface measurements can
support cut-and-fill estimates,
progress checks and reconciliation
of earthworks quantities.

Clearer Project Records

Dated orthomosaics and terrain models
provide a measurable record of
site changes that can be reviewed
by project stakeholders.

Introducing Drone Surveying

High-resolution imagery is not
automatically survey-grade data.

Drone surveying can produce extensive
spatial datasets, but reliable results
require an appropriate survey methodology.

Required accuracy:
Establish positional and elevation
tolerances before selecting
the aircraft and workflow.

Survey control:
Use suitable ground control and independent
checkpoints to verify survey results.

Site conditions:
Vegetation, reflective surfaces,
deep excavations and moving equipment
can affect data capture.

Coordinate systems:
Confirm the required horizontal and
vertical reference systems before
delivering survey data.

Measurement confidence:
Report the limitations of elevation
models and quantities, including
uncertainty where relevant.

What should construction teams consider?

What is the survey for?

Initial topography, earthworks planning,
volume calculations, design support
or repeat monitoring?

What accuracy is required?

Define the tolerances necessary for
the engineering decision rather than
assuming one method suits every application.

Which sensor is appropriate?

Consider photogrammetry, LiDAR or
a combined approach based on
site conditions and survey needs.

How will results be verified?

Agree the approach to ground control,
checkpoints and independent validation.

How will the data be used?

Confirm deliverable formats, coordinate
systems and compatibility with
CAD, GIS or design platforms.
