Iprosurv · Flight power for Matrice 4D and 4TD

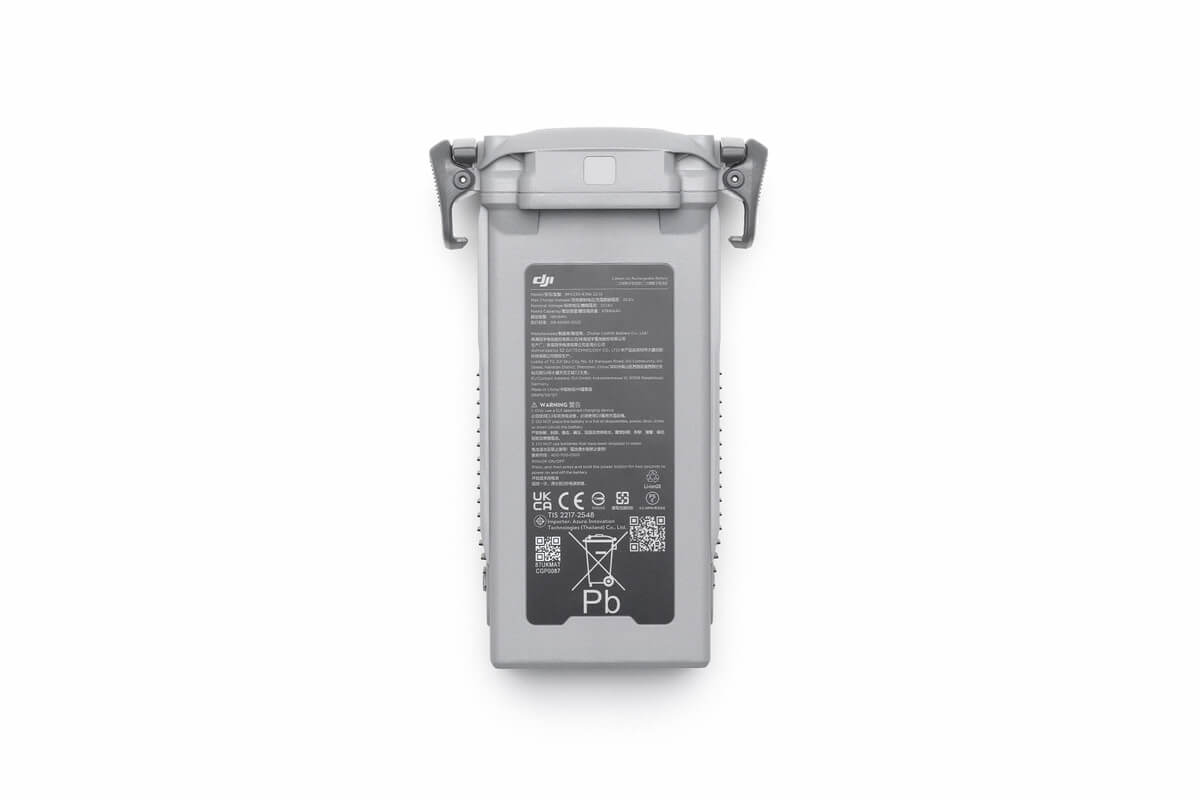

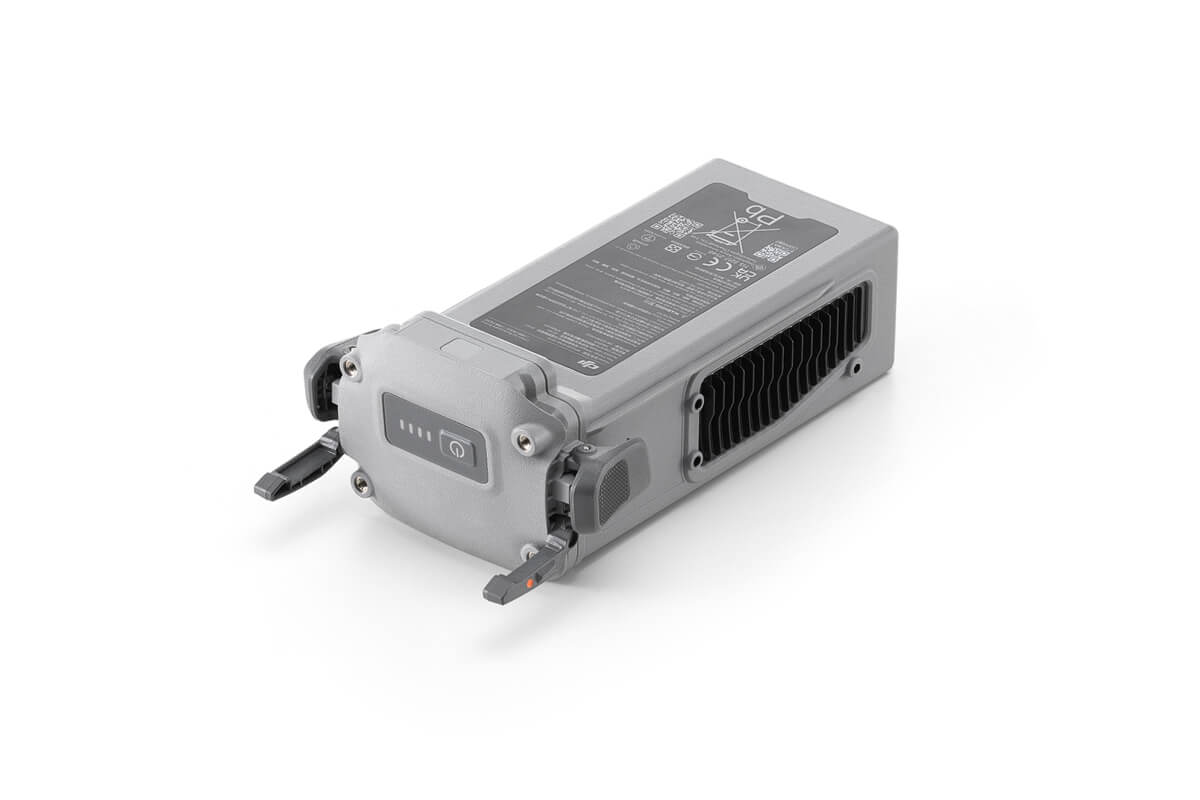

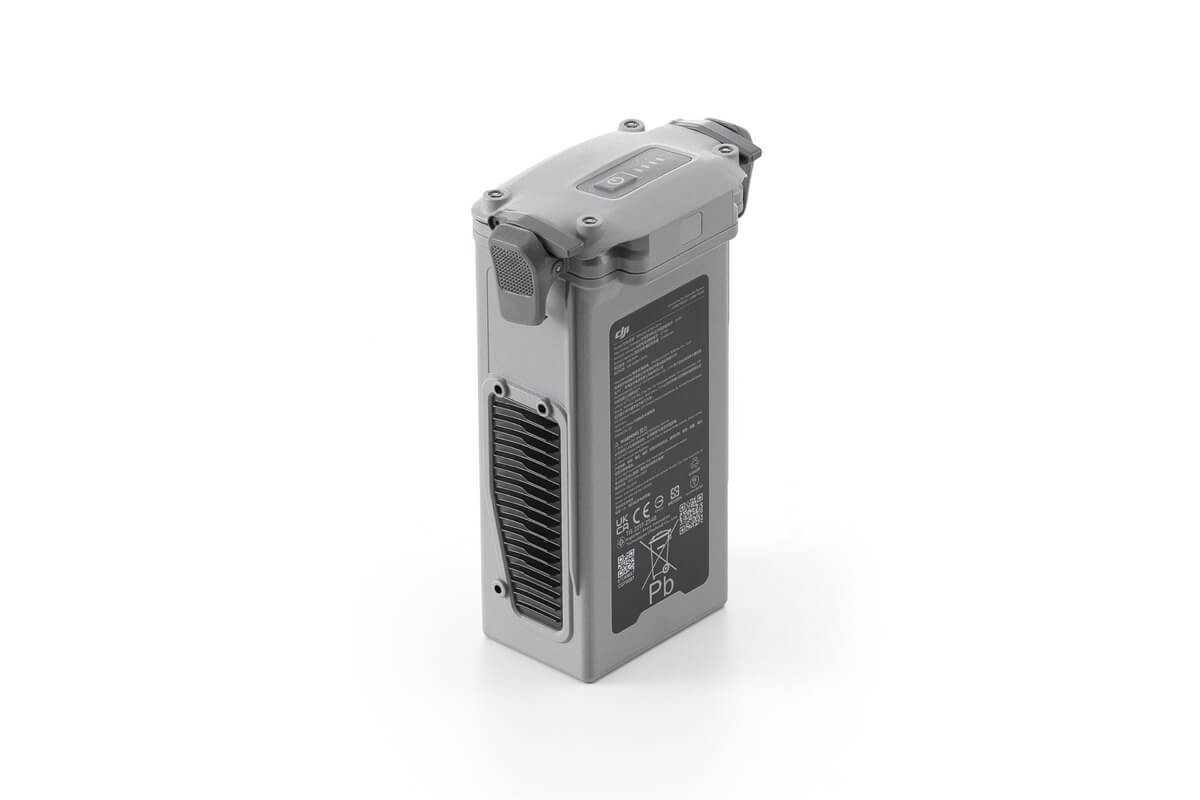

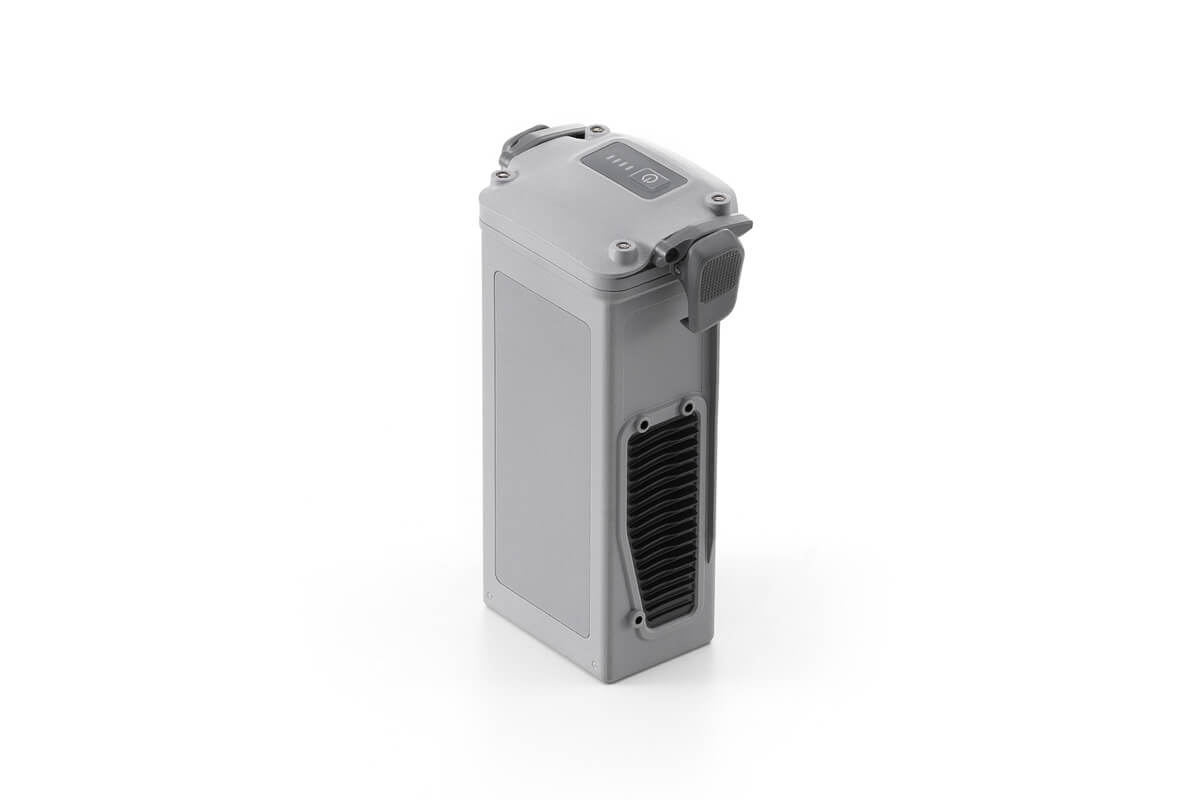

DJI Matrice 4D Series Battery
Keep your Matrice 4D Series aircraft ready for its next flight.
Add a dedicated battery for the Matrice 4D or Matrice 4TD. Whether your aircraft is used within a Dock 3 deployment or with a supported manual operating setup, the correct spare battery helps you plan equipment readiness and charging around the task.
How can we help?Speak to the TeamTell us what you need and we will help you choose the right option.
6768 mAhcapacity
149.9 Whrated energy
4D / 4TDcompatible aircraft
1 batterysupplied
Put it to work for you
Plan around repeat operations
Keep a spare available for maintenance, battery rotation and planned deployment needs. Match your stock of batteries to your aircraft and operating arrangements.
Use the matching charging system
Charge through DJI Dock 3 or the compatible Matrice 4D Series 240W Charging Hub. Choose the equipment that suits your deployment and field workflow.
Choose the right model
This battery is for the Matrice 4D and Matrice 4TD. Check the aircraft model before ordering so the battery and charging equipment match your kit.
Key specifications
Battery specification
- ModelBPX230-6768-22.14
- Capacity6768 mAh
- Rated energy149.9 Wh
- Battery typeLi-ion 6S
Compatibility and charging
- AircraftDJI Matrice 4D and Matrice 4TD
- Charging optionsDJI Dock 3 or Matrice 4D Series 240W Charging Hub
- Charging temperature5°C to 45°C
- Maximum charging power240 W
Supply and setup
- Standard voltage22.14 V
- QuantityOne battery
- Aircraft suppliedNo
- Dock / hub suppliedNo
For Matrice 4D/4TD. This is a different battery from the Matrice 4E/4T model. Charging performance and flight time depend on conditions, aircraft use and battery state.
What’s included
- DJI Matrice 4D Series Battery × 1
One battery only. Aircraft, Dock 3, charging hub, power adapter and other accessories are sold separately.
Need charging equipment?
Need the Matrice 4D Series 240W Charging Hub, power adapter or advice on a Dock 3 deployment? We can help check the charging setup and battery quantities for your application.
