Iprosurv · Visual and thermal inspection

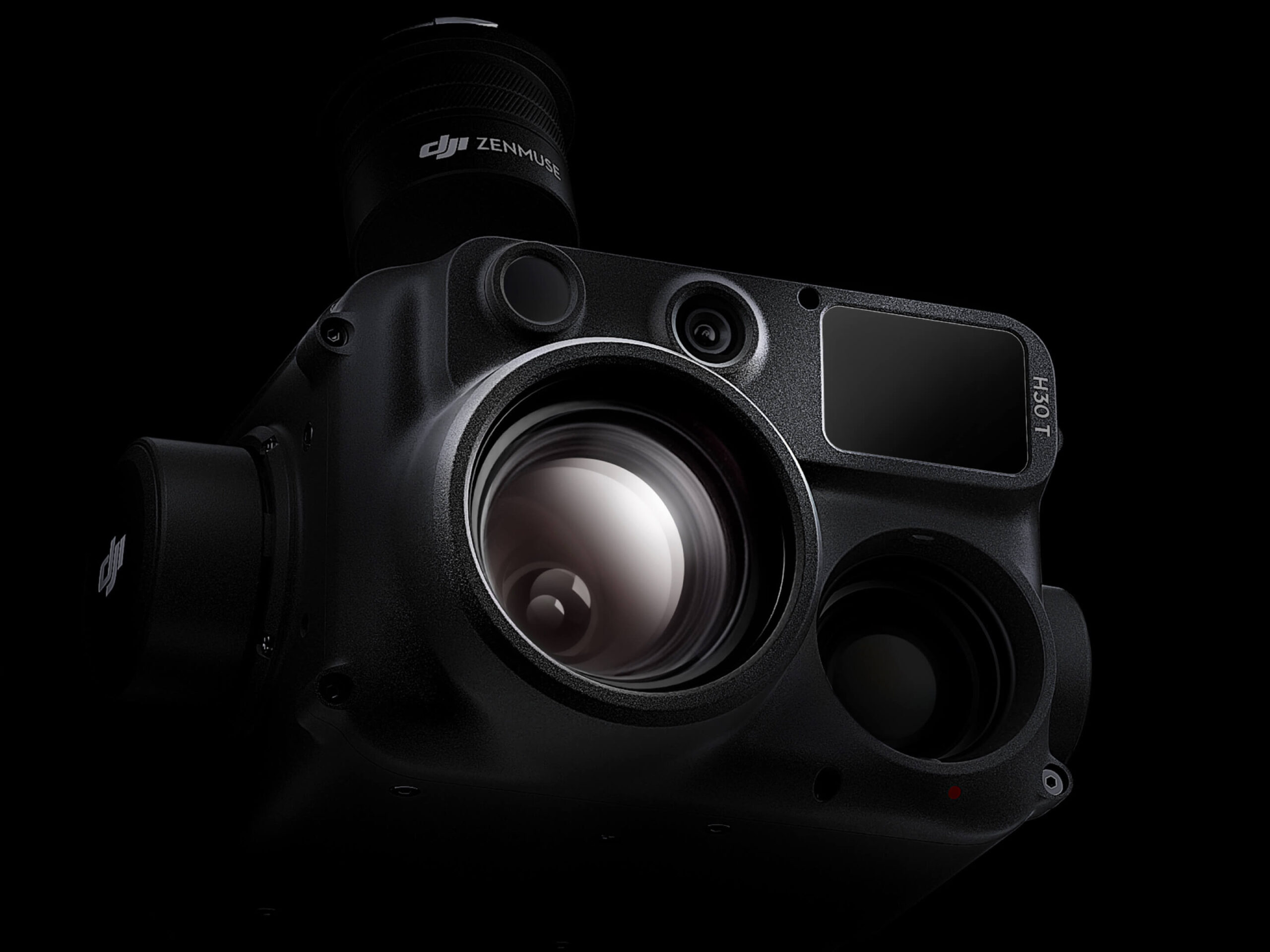

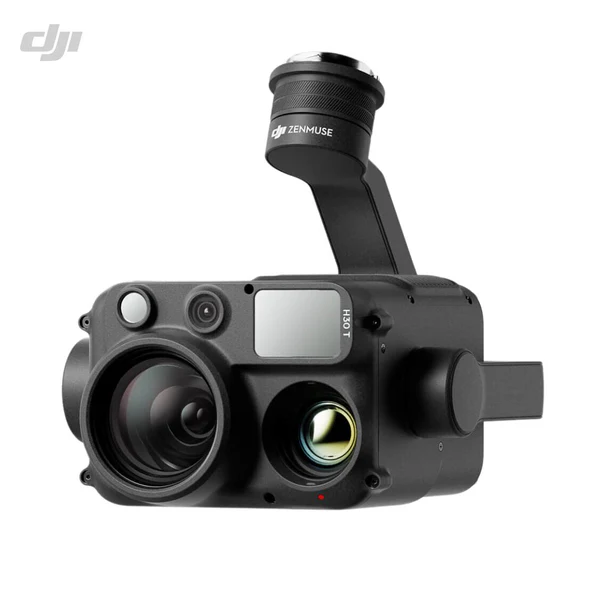

DJI Zenmuse H30T
Bring thermal information into your inspection decisions.
Combine visual detail and thermal imagery in a single inspection payload. The Zenmuse H30T adds a radiometric thermal camera to wide-angle imaging, powerful zoom, laser rangefinding and near-infrared lighting, helping teams review several perspectives of the same asset.
How can we help?Speak to the TeamTell us what you need and we will help you choose the right option.
1280 × 1024thermal resolution
48 MPwide-angle camera
34×hybrid optical zoom
IP54payload protection
Put it to work for you
Combine visual and thermal evidence
Use the thermal view to identify temperature patterns, then review the same area visually to support a more informed investigation.
Investigate the area of interest
Move between the wider asset view and the zoom perspective, retaining range and location context for observations.
Build a repeatable inspection workflow
Match the aircraft, capture method and thermal interpretation skills to the task. Discuss the equipment and practical training your team needs with Iprosurv.
Key specifications
Thermal imaging
- Thermal sensorUncooled VOx microbolometer
- Native resolution1280 × 1024
- Measurement functionsSpot, area and centre-point temperature measurement
- Thermal photographsR-JPEG
Visual and ranging
- Wide-angle camera48 MP, 1/1.3-inch CMOS
- Zoom camera40 MP, 1/1.8-inch CMOS
- Hybrid optical zoom34×
- Additional sensorsLaser rangefinder and NIR auxiliary light
Aircraft and environment
- Supported aircraftMatrice 400, Matrice 350 RTK and Matrice 300 RTK
- Matrice 300 controllerDJI RC Plus required
- ProtectionIP54
- Operating temperature-20°C to 50°C
Thermal measurements depend on target properties, distance, environment and capture settings. Use a suitable inspection method and interpretation. Confirm firmware, controller and mounting compatibility before use.
What’s included
- DJI Zenmuse H30T thermal payload × 1
- Standard supplied accessories according to the product offer
Aircraft, controller, infrared density filter, lighting/audio accessories and training are separate unless expressly included in the product offer.
Complete your setup
Explore related purchases below. Accessories, alternative products and separate training options are identified in each card.
DJI Matrice 400
A compatible aircraft platform for this payload.
DJI Zenmuse S1 – Spotlight
A spotlight option for a compatible enterprise aircraft.
Zenmuse V1 – Speaker
A speaker option for a compatible enterprise aircraft.
Speak to the Team
Tell us which product or package you are considering and what you want to achieve. We can help check compatibility, accessories and the support you need.
