Iprosurv · Lighting for the Matrice 4 Series

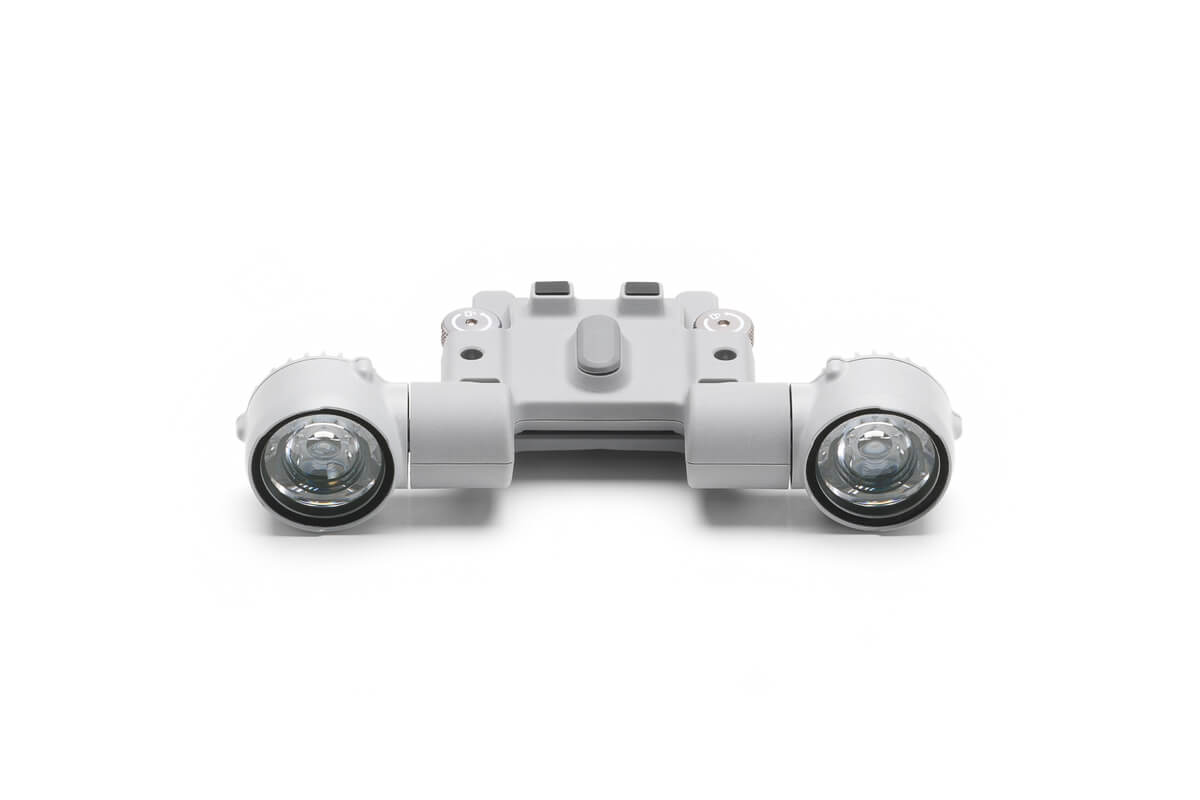

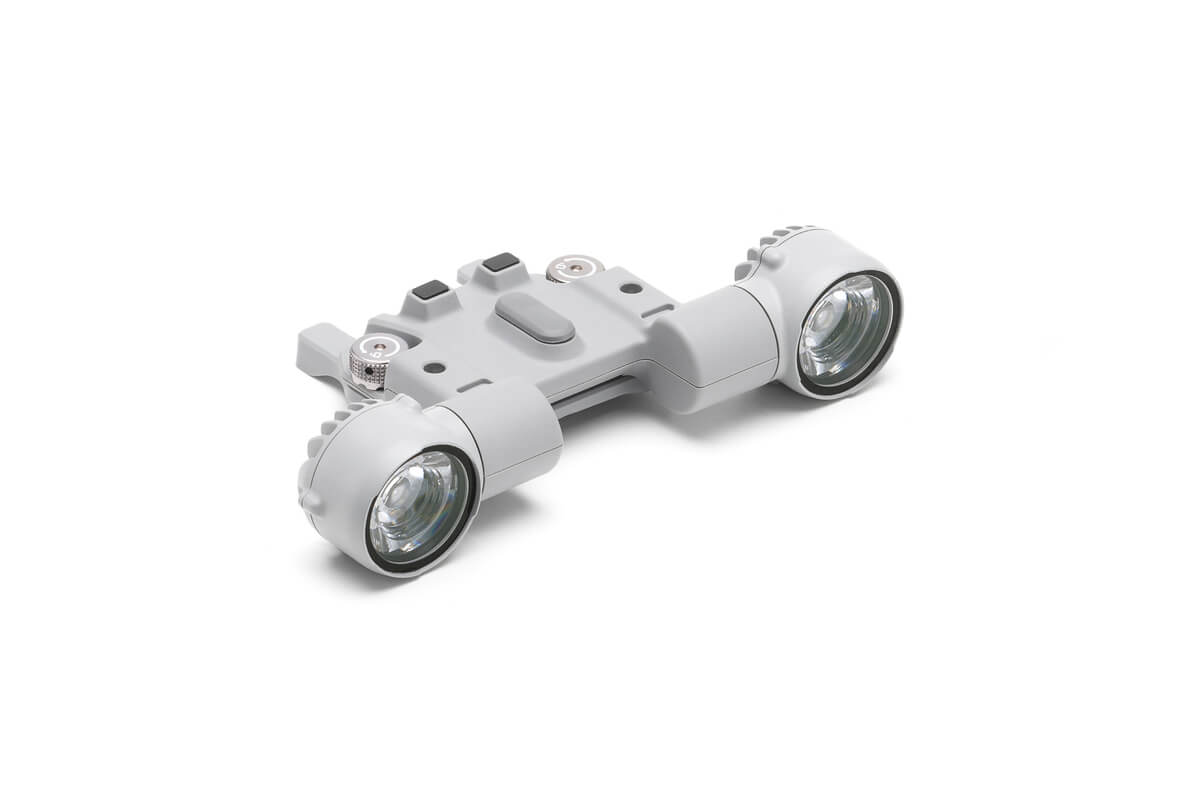

DJI AL1 Spotlight
Put light where the camera is looking.
Add targeted illumination to a compatible Matrice 4 Series aircraft. The DJI AL1 Spotlight follows supported camera gimbal movements, helping you keep the area of interest illuminated during planned low-light operations.
How can we help?Speak to the TeamTell us what you need and we will help you choose the right option.
100 mreference illumination distance*
2 modesalways-on and strobe
91 gexcluding bracket
Gimbal-linkeddirection control
Put it to work for you
Follow the inspection view
Link the spotlight with supported camera movements so the illuminated area follows the view you are examining.
Choose the coverage you need
Use the supported wide-FOV lighting mode for broader coverage, or select the lighting arrangement appropriate to the task.
Build a compact operational setup
Use the AL1 on its own or with the compatible AS1 Speaker. Check the mounting and flight implications for your aircraft before use.
Key specifications
Lighting
- ModesAlways-on and strobe
- Reference distanceIllumination at 100 m*
- Maximum power32 W
- Gimbal controllable tilt-90° to +35°
Physical
- Weight91 g, excluding bracket
- Dimensions79 × 164 × 28 mm, excluding bracket
- Operating temperature-20°C to 50°C
- MountingQuick-release hand-tightened screws
Compatibility
- Matrice 4 SeriesMatrice 4E and Matrice 4T
- Also supportedMatrice 4D Series, with specified mounting arrangement
- Combined useCompatible with DJI AS1 Speaker
- ActivationInternet activation and current firmware required
*Distance is a manufacturer reference under test conditions. Installation changes sensing and flight performance; DJI states obstacle avoidance switches off when the spotlight is on. Review the current aircraft/accessory instructions before operation.
What’s included
- DJI AL1 Spotlight × 1
- Spare screws × 2
- Hex key × 1
Aircraft and AS1 Speaker are sold separately. Follow the specified mounting arrangement for your aircraft. The accessory does not give the Matrice 4E/4T an aircraft IP rating.
