Iprosurv · Multi-sensor visual inspection

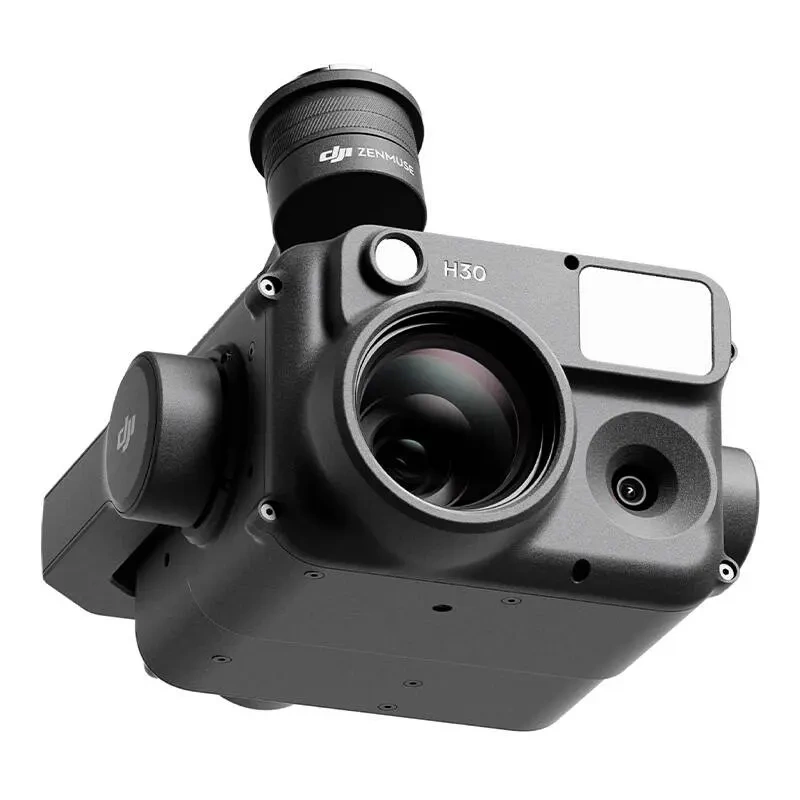

DJI Zenmuse H30
Get the visual detail your inspection needs.
Bring wide context, close-up detail and distance information together in one payload. The Zenmuse H30 combines wide-angle and zoom cameras, a laser rangefinder and near-infrared auxiliary lighting for visual inspection and operational awareness.
How can we help?Speak to the TeamTell us what you need and we will help you choose the right option.
48 MPwide-angle camera
40 MPzoom camera
34×hybrid optical zoom
IP54payload protection
Put it to work for you
Start wide, then investigate
Use the wide-angle view to understand the asset before moving into a closer camera perspective to examine features of interest.
Add distance and location context
Use rangefinding alongside the visual record to help organise observations and communicate where further attention is needed.

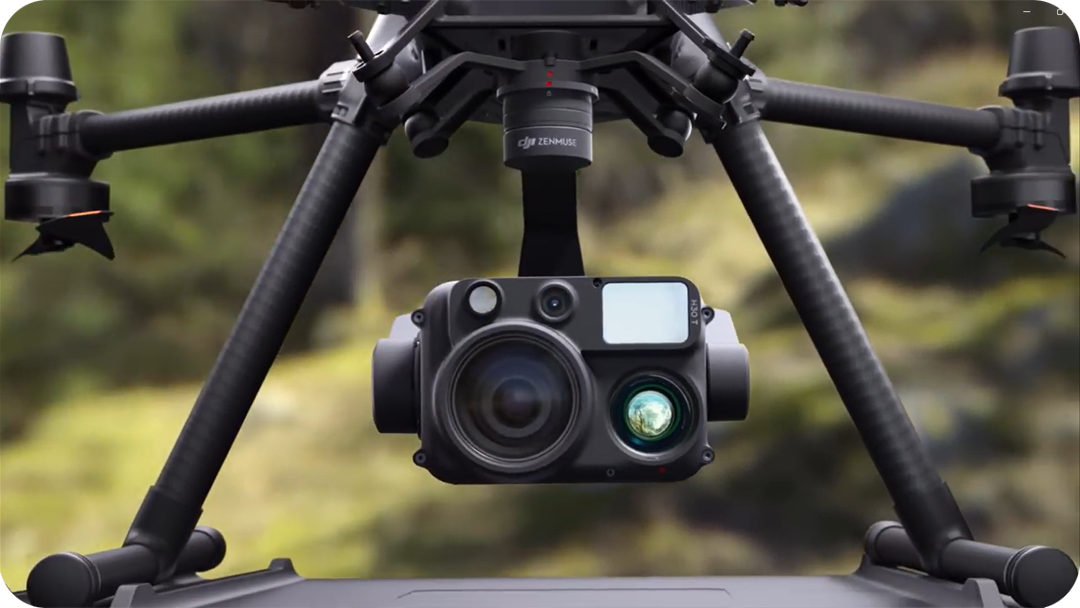

Work with a compatible aircraft
Build your visual inspection setup around a supported Matrice aircraft, controller and mounting configuration. Iprosurv can help you plan the complete kit.
Key specifications
Visual imaging
- Wide-angle camera48 MP, 1/1.3-inch CMOS
- Zoom camera40 MP, 1/1.8-inch CMOS
- Hybrid optical zoom34×
- VideoUp to 4K/30fps in supported modes
Sensors and control
- Laser rangefinder3–3000 m, target and conditions dependent
- Auxiliary illuminationNear-infrared lighting
- GimbalThree-axis stabilisation
- Capture workflowSupported DJI Pilot 2 functions
Aircraft and environment
- Supported aircraftMatrice 400, Matrice 350 RTK and Matrice 300 RTK
- Matrice 300 controllerDJI RC Plus required
- ProtectionIP54
- Operating temperature-20°C to 50°C
The H30 is the visual inspection model and does not include a thermal camera. Rangefinding depends on target and environmental conditions. Confirm firmware, controller and mounting compatibility with your aircraft.
What’s included
- DJI Zenmuse H30 payload × 1
- Standard supplied accessories according to the product offer
Aircraft, controller, lighting/audio accessories and training are separate unless expressly included in the product offer.
Complete your setup
Explore related purchases below. Accessories, alternative products and separate training options are identified in each card.
DJI Matrice 400
A compatible aircraft platform for this visual payload.
DJI Zenmuse S1 – Spotlight
Explore the Zenmuse S1 spotlight for a compatible aircraft.
DJI Zenmuse H30T
Compare the H30T if you need thermal imaging as well. This is an alternative payload purchase.
